10KWH 48v 200AH Lifepo4 Battery Powerwall For Home Solar Storage System


Product Specification:

  • Battery Chemistry Lithium Iron Phosphate [LiFePO4]
  • Nominal Voltage 3.25 Volt [per cell]
  • Charging Voltage 3.45 Volt [per cell]
  • Cycle Life > 7,000 cycles at 70% DOD
  • Warranty 10 years
  • Efficiency 95%
More Information

10 kWh BSLBATT Lithium Battery LFP-10

Our Energy Storage Solutions: BSLBATT in China, BSLBATT Lithium Iron Phosphate Batteries are a complete energy storage system. The integrated Battery Management System (BMS) monitors and regulates each cell in the battery bank to provide perfectly balanced charging and discharging. Includes fuse and internal DC disconnect to provide battery protection and isolation. The lithium-ion solar battery system is contained in a rugged metal enclosure. Quick and easy installation.

WITH OR WITHOUT SOLAR, ALWAYS HAVE BACKUP POWER

The BSLBATT Lithium Battery is a 10 kWh 48V Lithium Iron Phosphate (LFP) Battery with a built-in battery management system and an LCD screen that integrates and displays multilevel safety features for excellent performance. The BSLBATT Lithium Battery is maintenance-free and easy to integrate with solar or for independent operation to deliver power to your home day or night. Designed for backup power, off-grid, time of use, and self-use applications, the BSLBATT is consistently reliable and will keep your solar system operating during a power outage, or will use the energy stored from the daytime to power your home at night.

10KWH powerwall
battery powered homes THE WORLD’S SMARTEST BATTERY MANAGEMENT SYSTEM

The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection. This high-performance BSLBATT Lithium Battery has a large power capacity, with a fast charging and continuous discharge power, providing 98% efficiency. The advanced Lithium Ferro Phosphate (LFP) technology operates a wider temperature range to deliver the most dependable performance. LFP has been proven to be one of the safest Lithium technologies in the industry and is manufactured to the highest standards.

SAVE UP TO 25% ON YOUR UTILITY

When paired with solar, the BSLBATT 10 kWh Powerwall is the perfect way to automatically save money while paying the lowest possible cost for your energy.

cash

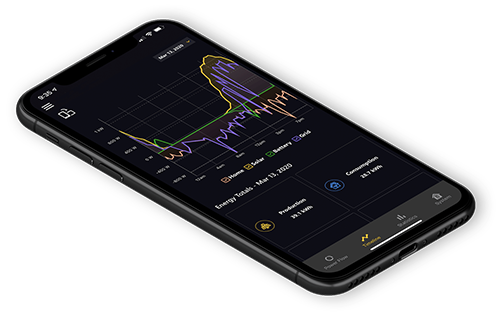

BSLBATT Power TAKE COMPLETE CONTROL WITH THE BSLBATT POWER APP

Our intelligent software combines weather, utility rate, and historical solar production and energy consumption data to continually drive energy efficiency and improve system performance to meet your specifically tailored goals.

The 10 kWh BSLBATT LFP-10 is the ideal energy storage solution for grid-tied or off-grid solar installations. Lower your utility bill by avoiding the need to buy electricity at peak times with the BSLBATT Lithium Battery LFP-10. Order online or by PHONE +86 752 2819469

Product Highlights

● Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

● No Thermal Runaway with Fire Propagation

● No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling

● Extended Operating Temperature -4 to 140F

● 98% Efficiency Rate

● Fast Charge & Discharge Rates

● 10,000 Cycle Life with a 10 Year Warranty

● Cycle One to Several Times Per Day

● Seamless Integration with All Industry Standard Inverter/Charge Controllers

● Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation

● Modular, Scalable & Proven Performance

● Made in China.

Specification

Model                                             BSLBATT 10 kWh LFP-48V Battery PACK
          Electrical Characteristics Nominal Voltage 48V(15series)
Nominal Capacity 50Ah/100Ah150Ah/200Ah
Energy 2400Wh/4800Wh/7200Wh/9600Wh
Internal Resistance ≤60mΩ
Cycle Life ≥5000 cycles @ 80% DOD, 25℃, 0.5C ≥4000 cycles @ 80% DOD, 40℃, 0.5C
Design Life ≥10 years
Months Self Discharge ≤2%,@25℃
Effificiency of Charge ≥98%
Effificiency of Discharge ≥100% @ 0.2C ≥96% @ 1C


                             Charge

Charge Cut-off Voltage 54.0V±0.1V
Charge Mode 1C to 54.0V, then 54.0V charge current to  0.02C (CC/CV)
Charge Current 100A
Max. Charge Current 130A
Charge Cut-off Voltage 54V±0.2V(Floating charge voltage)
                           Discharge Continuous Current 100A
Max. Continuous Discharge Current 130A
Discharge Cut-off Voltage 38V±0.2V
                      Environmental Charge Temperature 0℃~60℃ (Under 0℃ extra heating mechanism)
Discharge Temperature -20℃~60℃ (Under 0℃work with reduced capacity)
Storage Temperature -40℃~55℃ @ 60%±25% relative humidity
Water Dust Resistance Ip21 (The battery cabinet supports Ip55)


                     Mechanical

Method 15S1P/15S2P/15S3P/15S4P
Case Iron (Insulation painting)
Dimensions 780 x630 x160(220)mm
Weight Approx:30kg/48kg/70kg/96kg
Gravimetric Specifific energy Approx:92Wh/kg
Protocol (optional) RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter
                        Other SOC Light 6 * LED
Display Screen LCD(Optional)
Limit charge current 20A

Strong & Durable Structure

BSLBATT Wall-mounted home lithium battery adopts the patented rhombus 18650 LiFePO4 cells. The whole internal assembly from cells, modules, BMS to components are screw fastening that presenting utmost safety and reliability.

10 kWh powerwall 2 battery 10 kWh powerwall inverter
10 kWh battery powered homes 10 kWh power wall charger
buy 10 kWh powerwall 10 kWh solar battery pack for home
cost of 10 kWh powerwall 10 kwh battery price
10 kWh battery house

                                   Performance Characteristics

10 kWh Powerwall Long Life
10 kWh Powerwall Different current
10 kWh Powerwall Charging

The BSLBATT storage systems capture excess solar energy to provide power when it is needed most—when the power goes out, when electricity prices spike, or when the sun isn’t shining. BSLBATT curates a portfolio of hardware options from internationally recognized battery and power electronics suppliers in order to provide homeowners and businesses with safe, reliable, and renewable power.

Testimonials

“10 kWh BSLBATT batteries eliminated the most difficult challenges we face when building microgrids in remote tropical locations. The batteries are much easier to transport and they have a good chance of lasting the entire 20 years. This means BSLBATT batteries generally pay for themselves in under 4 years!”

We offer discounts on custom orders, just ask!
